RO machine

1.Advantages

1)Reverse osmosis products belong to the physical desalination method, the system equipment has many advantages, single membrane element desalination rate is high 99.3%, and can simultaneously remove colloids, organic matter, bacteria, viruses and various types of heavy metals.

2)No need for a large number of chemical agent treatment, no chemical waste liquid exclusion, no environmental pollution, high automation procedures, automatic shutdown in case of failure, with automatic protection function, can run continuously water production, simple system, easy to operate, stable water quality, equipment covers a small area, compact structure, reliable operation, high water quality and many advantages.

2.Technical parameters

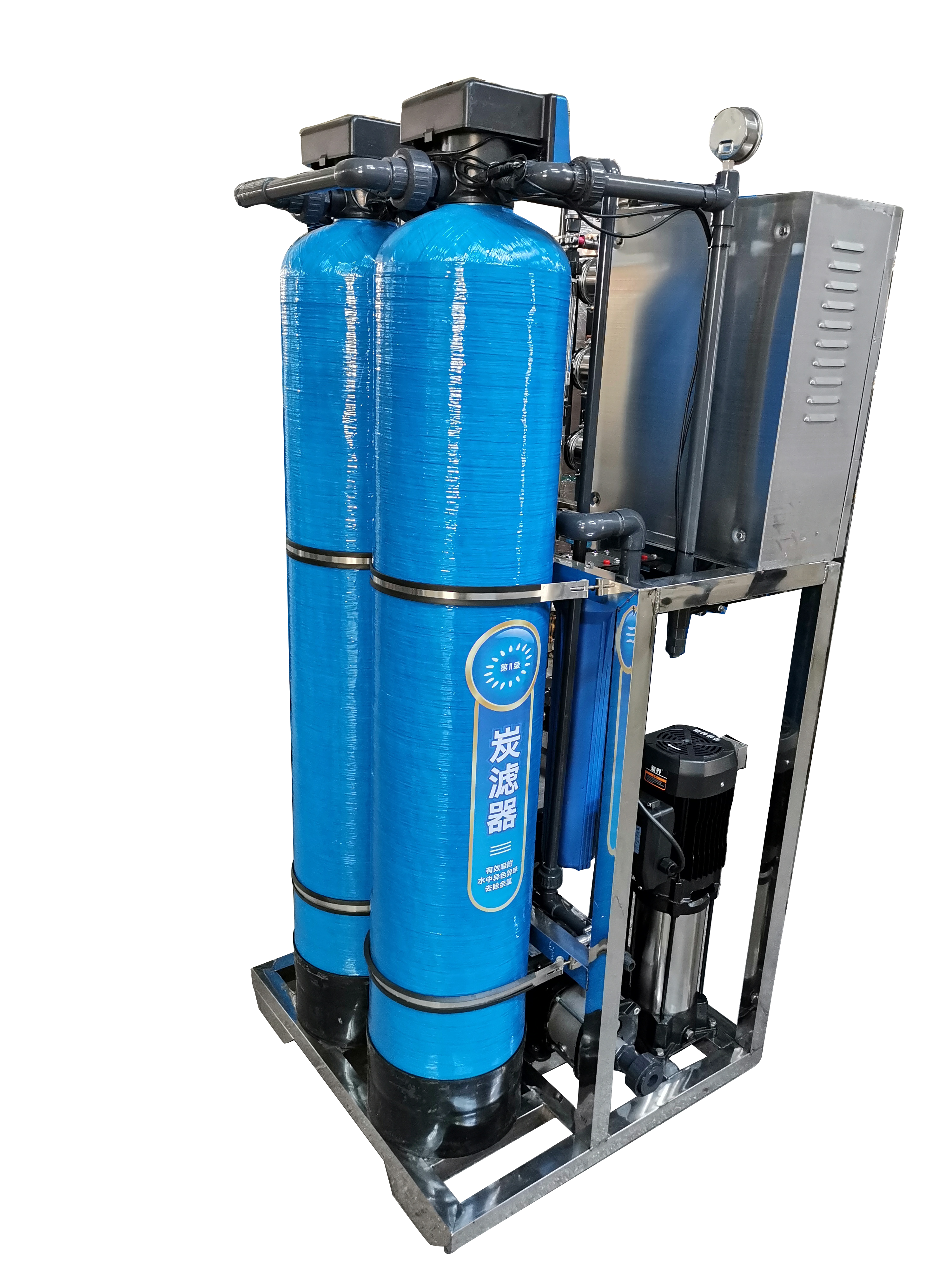

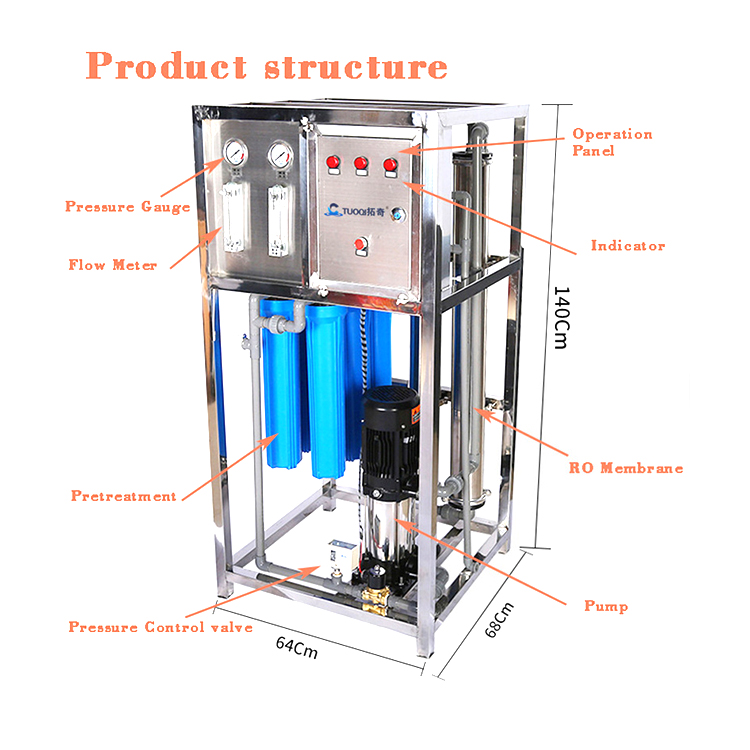

JHM-ROB-0.25T, JHM-ROB1-0.5T
Product capacity	250L/H, 500L/H
Power	AC220V, 50HZ/Customized
Working pressure	0.8-1.2MPA
Working technology	Raw water pump-Quartz sand-Activated carbon-PP-High pressure pump -RO membrane
Overall dimension	700x720x1600mm
Raw water pump	2-30/2-40
Quartz sand filter	250x1400mm(Automatic control)
Activated carbon filter	250x1400mm(Automatic control)
PP filter	20 inch
High pressure pump	2-7/2-8
RO membrane	1 pc/2 pcs (4040)
JHM-ROB2-0.5T
Product capacity	500L/H
Power	AC220V, 50HZ/Customized
Working pressure	0.6-1.0MPA
Working technology	Raw water pump-Quartz sand-Activated carbon-PP-High pressure pump -RO membrane
Overall dimension	1500x600x1600mm
Raw water pump	2-30/2-40
Quartz sand filter	250x1400mm(Automatic control)
Activated carbon filter	250x1400mm(Automatic control)
PP filter	10 inch 5 cores
High pressure pump	2-8
RO membrane	1 pc/2 pcs(4040)

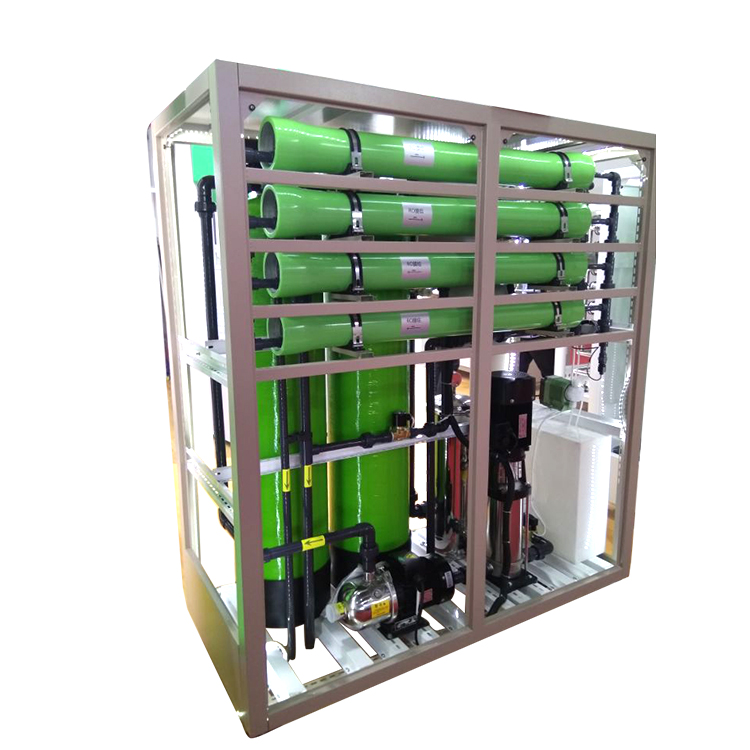

CLPR-ROB-0.75T/1T
Product capacity	750L/H, 1000L/H
Power	AC380V, 50HZ/Customized
Working pressure	0.8-1.0MPA
Working technology	Raw water pump-Quartz sand-Activated carbon-PP-High pressure pump -RO membrane
Overall dimension	1500x750x1900mm
Raw water pump	4-40
Quartz sand filter	350x1650mm(Automatic control)
Activated carbon filter	350x1650mm(Automatic control)
PP filter	5*20 inch
High pressure pump	2-8/2-9
RO membrane	3 pc/4 pcs(4040)

3.RO application

1)Direct drinking water

Campus direct drinking water, community direct drinking water into the home, the whole house water purification, hotel direct drinking water, office building direct drinking water, agricultural reform water (living drinking water mark), hospital direct drinking water, factory direct drinking water, airport station and service area direct drinking water;

2)Food and beverage producing water

Bottled water, drinking water, juice, beverages, beer, liquor, health care products, food industry drinking pure water; sea cucumber, squid, yellow throat, abalone, fish belly, blinds, shrimp; food processing, tofu, milk (yogurt, fruit milk, lactic acid beverage), soy milk, disposable tableware rinse water, etc.;

3)Medical producing water

Operating room cleaning water, dental bed cleaning water, Chinese medicine products, ultrasonic cleaning machine water, laboratory ultra pure water (biochemical);

4)Planting & aquaculture water

Flower cultivation, soilless cultivation, landscape, nutrition liquid configuration;

Raise chickens, cattle, sheep, fish, pigs and other livestock, poultry and drinking water;

5)Industry producing water

Electroplating, battery, glass industry (glass industry, glass coating, glue, hollow glass, tempered glass), boilers (hot water boiler recharge water, low-pressure steam boiler recharge water, medium and high pressure boiler ultrapure recharge water), electronic circuit ultrapure water (semiconductor materials, integrated circuits, liquid crystal display) Chemical(Chemical agent, leather, Printing and dyeing,textile), Solar photovoltaic (Solar tube production, quartz crucible, polysilicon, photovoltaic panel), Laboratory ultrapure water(Research unit, Universities, hospitals, troops), cosmetics (masks, wipes, makeup water, makeup remover) and so on.

6)Water for car maintenance

Glass water, antifreeze, car urea, car motorcycle spray cleaning etc.
