1. Brief Introduction
Membrane Bio Reactor(MBR) is a membrane seperation unit which was introduced into traditional sewage biological treatment technology of the new processing technology,Membrane separation unit in replace of traditional secondary sedimentation pool function at the same time, with further removal of organic matter and nitrogen and phosphorus, is currently the most advanced and efficient water treatment technology.
MBR system for removal of organic matter from the water (NH3-H), ammonia nitrogen, total nitrogen and total phosphorus (TN). The user can according to the requirements of combined anaerobic, anoxic, aerobic process, to achieve water requirements.

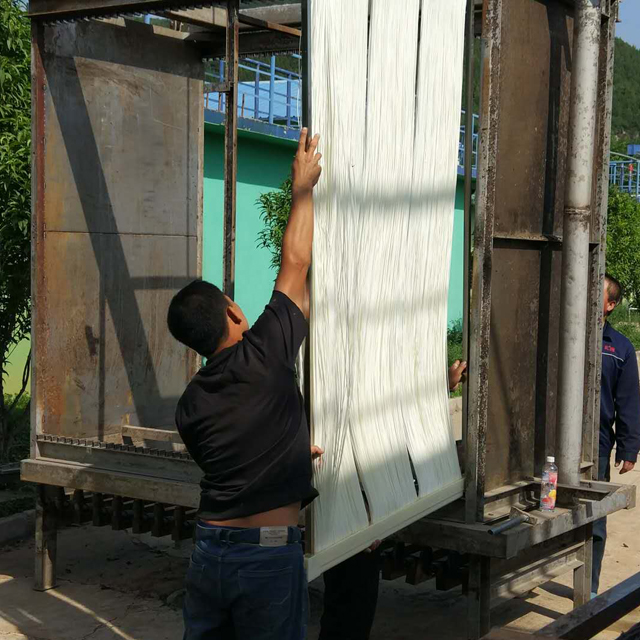

Our MBR System includes Hollow Fiber UF Membrane MBR system and Flat Sheet Membrane MBR system. Hollow Fiber UF Membrane MBR systemis is a waste water treatment system with MBR Bio-reactor as the core device, including raw water tank/ aeration device/ dosing device and backwashing device, etc. Flat Sheet Membrane MBR system no need backwash.
2. Process Drawing
Hollow fiber uf membrane MBR System process flow
Specification
NO | Capacity (m³.day) | Membrane module | Membrane Qty. |
1 | 10 | RGE-100-30 | 1set |
2 | 20 | RGE-100-50 | 1set |
3 | 30 | RGE-100-80 | 1set |
4 | 40 | RGE-100-100 | 1set |
5 | 50 | RGE-100-60 | 2sets |
6 | 60 | RGE-100-80 | 2sets |
7 | 70 | RGE-100-60 | 3sets |
8 | 80 | RGE-100-70 | 3sets |
9 | 90 | RGE-100-80 | 3sets |
10 | 100 | RGE-100-80 | 3sets |
11 | 110 | RGE-100-70 | 4sets |
12 | 120 | RGE-100-100 | 3sets |
13 | 130 | RGE-100-80 | 4sets |
14 | 140 | RGE-100-90 | 4sets |
15 | 150 | RGE-100-100 | 4sets |
16 | 180 | RGE-150-100 | 3sets |
17 | 200 | RGE-100-100 | 5sets |
18 | 300 | RGE-150-160 | 3sets |
19 | 500 | RGE-150-160 | 5sets |
20 | 1000 | RGE-150-160 | 10sets |
Main used in the field as below:
1.Domestic wastewater application;
2.Municipal wastewater application;
3.Food and beverage industry application;
4.Fermentation industry application;
5.Environmental protection industry.
