MBR Membrane

Item: hollow fiber MBR module;
Item no.: JHM MBRIII35Z-52;
MBR element pcs per module: max. 52pcs;
Membrane area per element: 35m2~40m2;

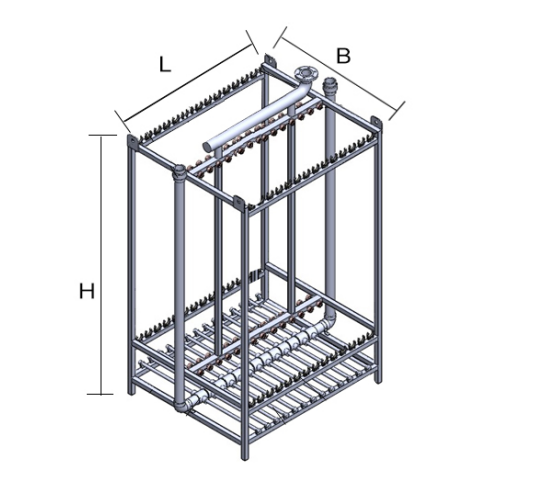

Module size: 2264*1750*2890mm

Availability:
Quantity:
  • JHM MBRIII-35Z

  • JHM

  • JHM MBRIII-35Z

Product Description

1.Introduction

Membrane Bio Reactor(MBR) is a membrane seperation unit which was introduced into traditional sewage biological treatment technology of the new processing technology, membrane separation unit can replace the traditional two precipitation pool functions at the same time, with further removal of organic matter and nitrogen and phosphorus, is currently the most advanced and efficient water treatment technology.JHM - MBR is lined with enhanced hollow fiber membrane based on the development of high-end MBR membrane module.



2.Advantages

Membrane high mechanical strength, stable water quality, operation flux is big, long service life

1).JHM MBR membrane is high efficiency, especially capable in frequent disuse occasions.

2).Anti-oxidant modification on the in-let membrane surface makes it more durable in harsh environment like wastewater.

3).Fine inner diameter of the membrane fiber can ensure that sludge blocks the membrane pore the instant the fiber is broken accidentally, endowing the membrane with self-repairing function without affecting outflow water quality.

4). A longer shelf life than other manufacturers.



3. Technical Parameters

Model

JHM-MBR-1

BXLXW

JHM-MBR-2

BXLXW

Specification

630x1500x36

630x2000x36

ID/OD(mm)

0.8/1.9

1.0/2.2

0.8/1.9

1.0/2.2

Effective membrane area(m2)

15

20

Filtration precision(um)

0.1

0.034

0.1

0.034

Membrane shell material

ABS

Membrane material

PVDF&PET supporting tube

Connecting pipe specification

Φ32

Catchment way

Both end of the catchments

Filter type

Immersion suction filtration

PH

2-12

Temperature(℃)

10-45

Oil content(mg/l)

<3

TMP(Mpa)

0.02-0.05

Reverse flushing pressure(Mpa)

0.1

Aeration  rate

Gas water rato 15:1-20:1

Allow sludge concentration(mg/l)

4000-12000

Design flux(l/m2·h)

10-40

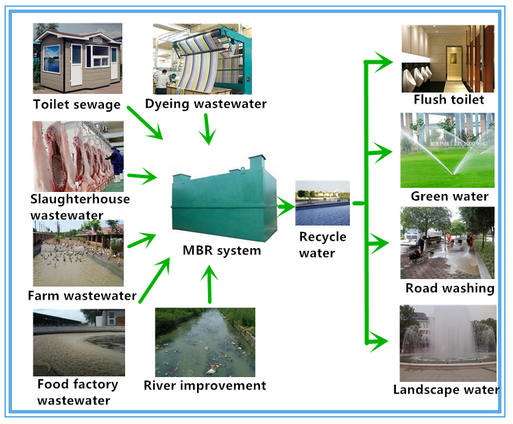

MBR Application



Mainly used in treating the Waste Water which is from the fields below:
1.Garbage filterring liquid;

2.Sewage of food & beverage;

3.Paper-making, printing and dyeing;

4.Eiderdown, butcher;

5.Chemical industries;

6.Leather industry;

7.Sanitary sewage.

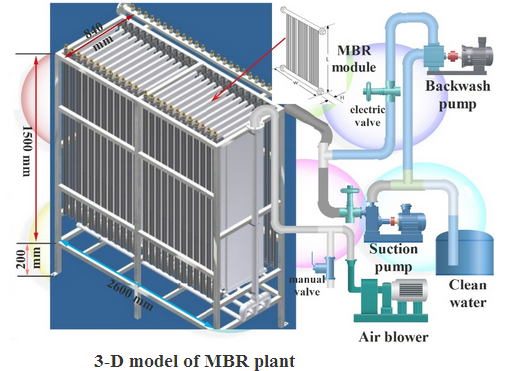

MBR PROCESS FLOW DIAGRAM
