JHM 250L EDI module Continous electrodeionization CDI module for pure water
Home » Products » Water Purification Equipments » EDI purification equipment » JHM 250L EDI module Continous electrodeionization CDI module for pure water

loading

Share to:
sharethis sharing button

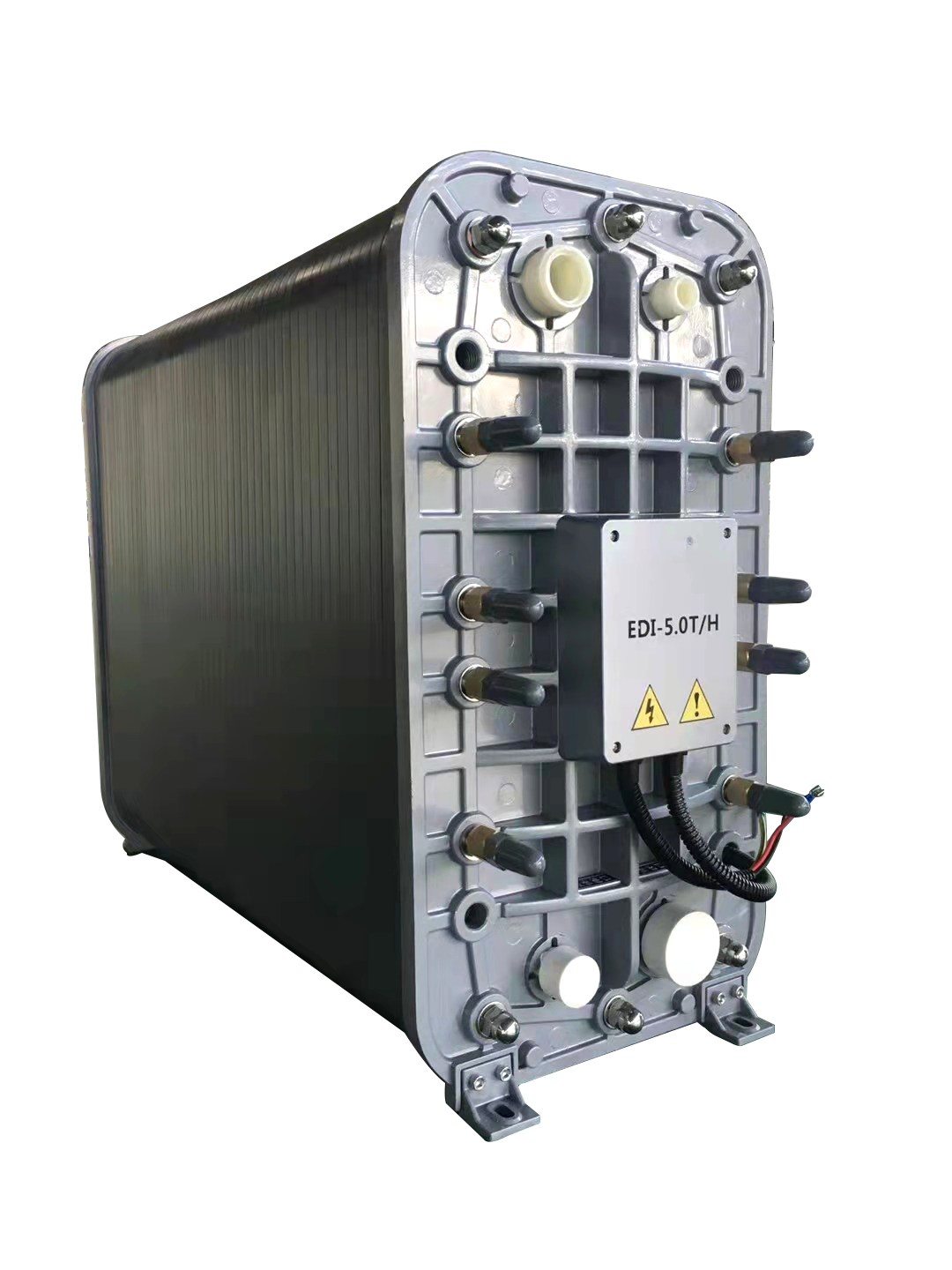

JHM 250L EDI module Continous electrodeionization CDI module for pure water

Availability:
Quantity:
Inquire Add to Basket

Product Description

Key attributes

Other attributes

Applicable Industries
Other
Showroom Location
Turkey, Peru, Russia, Romania
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product 2022
Warranty of core components
3 years
Core Components
membrane, power
Place of Origin
Shandong, China
Warranty
1 Year
Productivity
1T/H
Weight (KG)
60 kg
Condition
New
Brand Name
JHM
Material
Wooden case
Weight
50
Size
390*365*755mm
Power
11
Item Name
EDI module
Capacity
1T/H
Resistivity for produced water
≥15Mohms.cm
Filteration media
ion exchange resin
Voltage
10-40DCA
Current
2-5.0DCA
Inlet pressure
0.1-0.3Mpa
Max. pressure
0.7Mpa
Pipe OD
DN32
Module size
390*365*755mm

Packaging & delivery

Package Type:
Wooden cases with plastic bags, accord with the standard export packing.

Supply Ability

Supply Ability
10000 Piece/Pieces per Month


Product Introduction
Outsize Dimension
Item
L
( mm)
W
(mm)
H
(mm)
L1
(mm)
W1
(mm)
01
①2
①3
EDI-P-10L
110
155
325
120
60
DN6
DN6
DN8
EDI-P-50L
120
155
325
130
70
DN6
DN6
DN8
EDI-P-100L
150
155
325
160
70
DN6
DN6
DN8
EDI-P-200L
210
155
325
230
70
DN8
DN8
DN8
EDI-P-250L
270
155
325
290
70
DN8
DN8
DN8
Basic specification parameters
Item
EDI-P-10L
EDI-P-50L
EDI-P-100L
EDI-P-200L
EDI-P-250L
Product flow (L/H)
10-20
50
100
200
250
Recovery(%)
60-70
70-80
70-80
70-80
70-80
Resistivity (ΜΩ.cm)
≥15
≥15
≥15
≥15
≥15
Voltage(DCV)
4-12
24-40
24-40
24-40
24-40
Current(DCA)
0.2-0.3
0.5-1.0
0.5-1.0
0.5-1.0
0.5-1.0
Inlet pressure
(Mpa)
0.01-0.3
0.05-0.3
0.08-0.3
0.1-0.4
0.1-0.4
Max. Pressure(Mpa)
0.4
0.4
0.4
0.4
0.4
Size of fresh product pipe
DN6
DN6
DN6
DN8
DN8
Size of concentrated inlet/outlet pipe
DN6
DN6
DN6
DN8
DN8
Outsize Dimension
Item
L (mm)
W (mm)
H (mm)
L1 (mm)
W1 (mm)
EDI-P&F-0.5-HP
155
310
680
200
197
EDI-P&F-1.0-HP
218
310
680
258
197
EDI-P&F-2.0-HP
375
310
680
415
197
EDI-P&F-3.0-HP
530
310
680
560
197
EDI-P&F-4.0-HP
675
310
680
715
197
Basic specification parameters
Item
P&F-0.5-HP
P&F-1.0-HP
P&F-2.0-HP
P&F-3.0-HP
P&F-4.0-HP
P&F-5.0-HP
Product flow (L/H)
0.5
1.0
2.0
3.0
4.0
5.0
Min. Product flow (T/H)
0.3
0.7
1.4
2.4
3.2
4.0
Max. Product flow (T/H)
0.7
1.5
2.5
3.8
4.8
6.0
Recovery(%)
90-95
90-95
90-95
90-95
90-95
90-95
Resistivity (ΜΩ.cm)
≥15
≥15
≥15
≥15
≥15
≥15
Voltage(DCV)
9-18
15-30
30-60
45-90
60-120
120-150
Current(DCA)
2-5
2-5
2-5
2-5
2-5
2-5
Inlet pressure (Mpa)
0.1-0.3
0.1-0.3
0.15-0.4
0.15-0.4
0.15-0.4
0.15-0.4
Max. Pressure (Mpa)
0.7
0.7
0.7
0.7
0.7
0.7
Size of fresh product pipe
DN25
DN25
DN25
DN25
DN25
DN25
Size of concentrated inlet/outlet pipe
DN15
DN15
DN15
DN15
DN15
DN15


LX series EDI Feeding water requirement

Co₂
< 10ppm
Hardness
< 5ppm
PH
6.5 ~9
Inlet pressure
0.1 ~0.6Mpa
Free chlorine
<0.02ppm
Fe
<0.01ppm
Mn
<0.01ppm
Acid sulphite
<0.01ppm
TOC
<0.5ppm
SiO₂
<0.5ppm
Inlet water temperature
5 ~35℃
Item
L ( mm)
W (mm)
H (mm)
L1 (mm)
W1 (mm)
EDI-LX-04Z
150
320
605
190
218
EDI-LX-10Z
210
320
605
255
218
EDI-LX-18Z
330
320
605
370
218
EDI-LX-24Z
420
320
605
460
218
EDI-LX-30Z
510
320
605
550
218
EDI-LX-45Z
715
320
605
765
218
LX series EDI Basic specification parameters
Item
EDI-LX-04Z
EDI-LX-10Z
EDI-LX-18Z
EDI-LX-24Z
EDI-LX-30Z
EDI-LX-45Z
Product flow (L/H)
0.5
1.0
2.0
2.5
3.0
5.0
Min. Product flow(T/H)
0.22
0.55
1.1
1.4
1.7
2.55
Max. Product flow(T/H)
0.67
1.35
2.8
3.5
4.2
6.8
Recovery (%)
90-95
90-95
90-95
90-95
90-95
90-95
Resistivity(ΜΩ.cm)
≥15
≥15
≥15
≥15
≥15
≥15
Voltage (DCV)
8-20
10-40
25-60
40-80
50-100
60-150
Current (DCA)
2-5
2-5
2-5
2-5
2-5
2-5
Inlet pressure (Mpa)
0.1-0.3
0.1-0.3
0.15-0.4
0.15-0.4
0.15-0.4
0.22-0.4
Max. Pressure (Mpa)
0.7
0.7
0.7
0.7
0.7
0.7
Size of fresh product pipe
DN32
DN32
DN32
DN32
DN32
DN32
Size of concentrated inlet/outlet pipe
DN20
DN20
DN20
DN20
DN20
DN20
（1）  Higher and stable quality water product;
（2）No need for acid-base regeneration;
（3）Continuous running,simple peration;
（4）Less requirements and cost in installation;
（5）Modular system,more flexible,easy to expand;
（6）No generation chemical waste;
（7）Reduced facility requirements;
（8）Low cost in running and maintenance;
（9）Easy to integrate into existing water systems;
（10）No recirculation-increased reliability.
Feeding water
RO water, conductivity <20 m s/cm, better < 10 u s/cm
PH
6.5-9.0
Water temperature
5-35°C
Hardness(as CaCO 3)
< 0.5ppm
Organics
<0.5ppm,TOC recommended to be 0 ppm
Oxidizers
< 0.05ppm,CI 2：0.05ppm,0 3：0.02ppm,better both to be 0 ppm
Metals
< 0.01 ppm
Silica
 < 0.5ppm
Carbon dioxide
<5ppm
Oil
not detectable
